Napisano: 13 Okt 2010 6:38
Upravo gledam dostupne BIOSe za A7V8X-X.
Citat:13
Support new CPUs. Please refer to our website at: http://www.asus.com.tw/support/cpusupport/cpusupport.aspx
12
Support new CPUs. Please refer to our website at: http://www.asus.com.tw/support/cpusupport/cpusupport.aspx
Revise PS2 keyboard detection code to speed up post
11
Remove TCAV.
10
Patch for Samsung M368L6423 / M368L3223 DRAM
Solve PS/2 keyboard sometimes become abnormal after entering Windows.
A7V8XX09.ZIP
Improve compatibility with ATI VGA cards.
A7V8XX08.ZIP
Solve system may hang up while some kinds of wireless keyboard/mouse used.
A7V8XX07.ZIP
Improve the stability with certain AGP 4X cards.
Solve sometimes certain pci cards may not be detected.
A7V8XX06.ZIP
Fix some Logitech wireless keyboard/mouse cannot work under Windows XP
Fix on-board audio SSID may be incorrect after resume from S3
Correct System hangs sometimes after POST screen shows "PNP Init complete"
A7V8XX05.ZIP
Adjust FAN warning threshold from 1800 to 1200 rpm
Remove "onboard Lan boot rom" item if onboard lan is disabled
Add supporting boot from some USB Storage devices
A7V8XX04.ZIP
Add CAS latency option [3.0T/1.5T]
Fix Adaptec 29320 PCI RAID card fail to install
Fix PS/2 mouse cannot power up system from soft-off state
Fix some PS/2 keyboards' power key cannot power up system
Tuning Hardware monitor CPU temperature
A7V8XX03.ZIP
Enlarge stability for 333MHz FSB CPU
Sudeći po starim temama kod tebe je 1005. Nisam siguran da li bi noviji BIOS rešio problem, ali dobro je znati da je najnoviji 1013 iz 2004.. Nalazi se u zip arhivi koja se zove A7v8xx13.zip i moguće je skinuti sa više mesta na webu, uključujući:
http://www.softwaredriverdownload.com/download/driver/A7v8xx13.zip
Koliko se meni čini, na ASUS web strani trenutno nije moguće naći informacije za starije matične ploče. Nisam proveravao da li postoji ftp server.
Više informacija o poslednjoj reviziji:
Citat:ASUS A7V8X-X BIOS 1013 (Newer Than 1010) - Software Driver Download
ASUS A7V8X-X 1010 bios is a major patch because it solves problem for PS/2 keyboard sometimes become abnormal after entering Windows as well as offer more compatibility for Samsung M368L6423 / M368L3223 DRAM. Patch 1010 was released on 2004/04/02.
Not long after that, or the exact date was 2004/09/09, a latest stable patch was release. Patch 1013 (as discuss here) offer supports for new CPUs. Asus website refer to page http://www.asus.com.tw/support/cpusupport/cpusupport.aspx in case we want to know what new CPUs supports are added. However, the link is broken so I tried to dig into the downloadable BIOS file itself to see if there is any indication.
The download BIOS file, A7v8xx13.zip contains one file, a7v8xx13.awd. a7v8xx13.awd is in the format of SFX LZH archive which further contains one file named: Group2.ROM, lets see what we got in the ROM file.
Ok, here is the list of CPU frequency that I get from the BIOS ROM file. See if you need to install any of these new CPU to your ASUS A7V8X-X.
500 MHz, 550 MHz, 600 MHz, 650 MHz, 667 MHz, 700 MHz, 733 MHz, 750 MHz, 800 MHz, 833 MHz, 850 MHz, 867 MHz, 900 MHz 917 MHz, 933 MHz, 950 MHz, 1000 MHz, 1050 MHz, 1067 MHz, 1083 MHz, 1100 MHz, 1133 Hz, 1150 MHz, 1167 MHz, 1200 MHz, 1250 MHz, 1267 MHz, 1300 MHz, 1333 MHz, 1350 MHz, 1400 MHz, 1417 MHz, 1467 MHz, 1500 MHz, 1533 MHz, 1583 MHz, 1600 MHz, 1650 MHz, 1667 MHz, 1700 MHz, 1733 MHz, 1750 MHz, 1800 MHz, 1833 MHz, 1867 MHz, 1900 MHz, 1917 MHz, 2000 MHz, 2083 MHz, 2100 MHz, 2133 MHz, 2167 MHz, 2200 MHz, 2250 MHz, 2267 MHz, 2300 MHz, 2333 MHz, 2400 MHz, 2500 MHz, 2533 MHz, 2600 MHz, 2667 MHz, 2700 MHz, 2750 MHz, 2800 MHz, 2833 MHz, 3000 MHz, 3167 MHz, 3200 MHz, 3300 MHz, 3333 MHz, 3400 MHz, 3500 MHz, 3600 MHz, 3750 MHz, 3800 MHz, 4000 MHz, 4200 MHz, 4500 MHz
Dopuna: 13 Okt 2010 7:15
Opcije u BIOS-u koje bi mogle biti od interesa ovde (ekstratkovane iz kratkog pregleda BIOS rom fajla:
USB Legacy Support
Disabled
Enabled
Auto
Enable support for Legacy Universal Serial Bus.
Boot opcije (?)
LS120
ATAPI MO
USB FDD
USB ZIP
IDE Hard Drive
ATAPI CD-ROM
Other Boot Device
I dalje ne postoji opcija za boot sa USB fleške. Mislim da je legacy USB podrška ograničena samo na HID uređaje (tastature i miševi). Znači bez eksternog boot CD roma ili floppy-a mala je šansa da boot-uješ sa Fleške.
Dopuna: 13 Okt 2010 7:22
Jedna od eksternih opcija za boot sa HDDa bi potencijalno mogao biti Super Grub Disk. Možeš probati tako što ćeš ga skinuti odavde:
http://www.supergrubdisk.org/2010/08/20/sg2d-downloads-20100820/

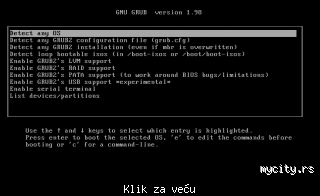

Narežeš ga na CD i bootuješ sa CD-a. U opcijama izabereš "Enable GRUB2'S USB support (experimental)":
Zatim možeš testirati da li je USB fleš vidljiv pomoću opcije "List Devices and Partitions". Ako jeste, verovatno bi sledeća opcija bila "Detect any OS".
|
jer je dvostruka negacija
